Miniature Coaxial Interconnect, 3.0mm Mated Height for Robust Use
Fully Compatible with Hirose H.FL series; 100% Equivalent
Sunridge MCG series coaxial product fulfills the rigorous demands of both highly reliable RF signal transmission and rugged usage as required in mobile or on-vehicle wireless IT devices. In a small form factor of 4.5mm x 5.0mm footprint and 3.0mm mated height, and designed for 50 Ohm impedance over a working frequency range from DC to 6.0 GHz, MCG features a supreme performance of low insertion loss and a VSWR below 1.20 (at 1575 MHz GPS frequency) and it provides for a sturdy retention force of 1.5Kg. MCG offers a reliable, cost-effective solution for board to board or board to panel integration.

Product Spec

Product details

Space Economy: 4.5mmx5.0mm footprint, 3.0mm mated height
Cable Connector: designed for study mating with PCB socket.
Teflon Cable: silver plated center conductor and braid, Teflon dielectric and jacket. Cable options available for requirements in routing flexibility, structural strength, or double-shielding.

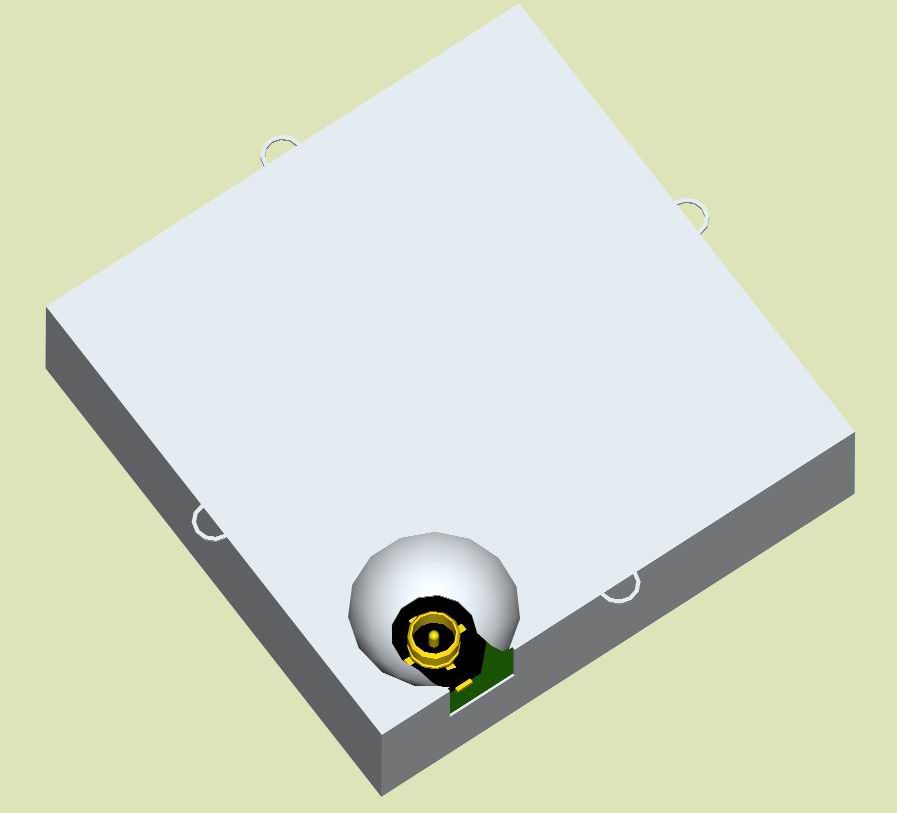

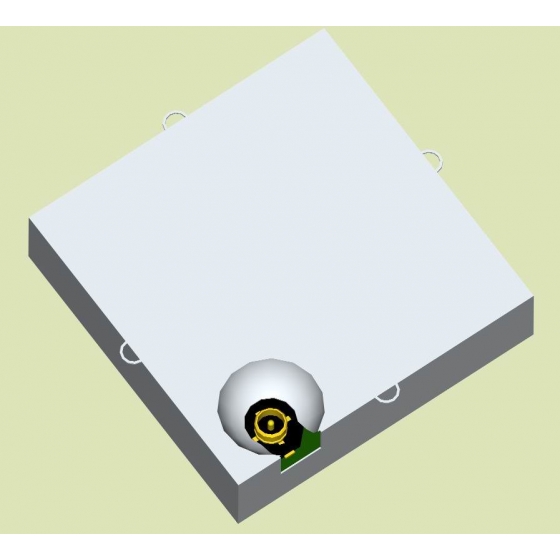

PCB socket: On-piece integral modled construction. High temp plastic housing for IR reflow. Protection for mated cable head.
Strength: Lead-in and interlock features make for easy insertion and sturdy engagement among mating components.

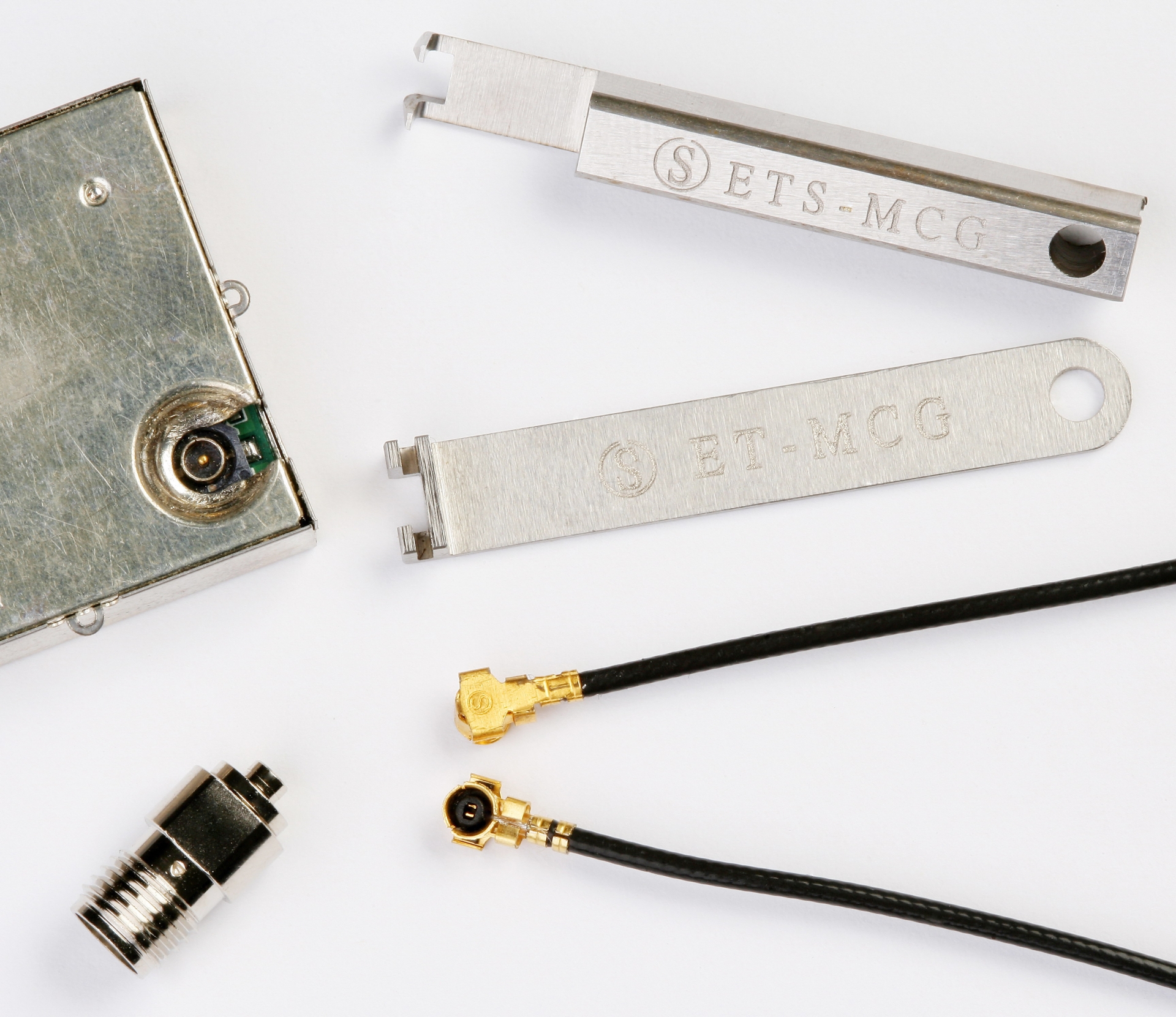

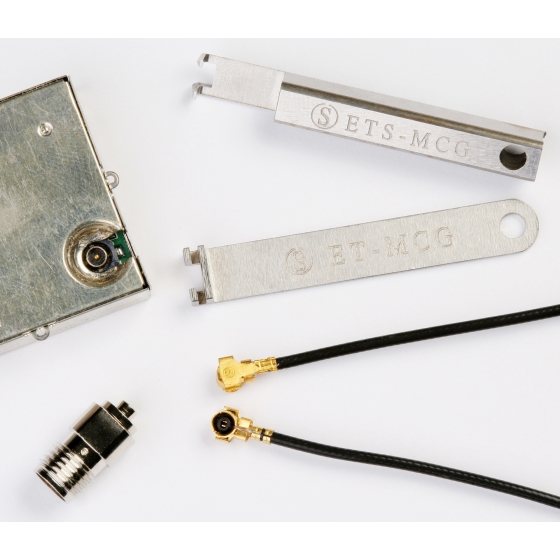

Accessory: Insertion/extraction tool for open space or recessed area. SMA adapter for connection to network analyzer.
